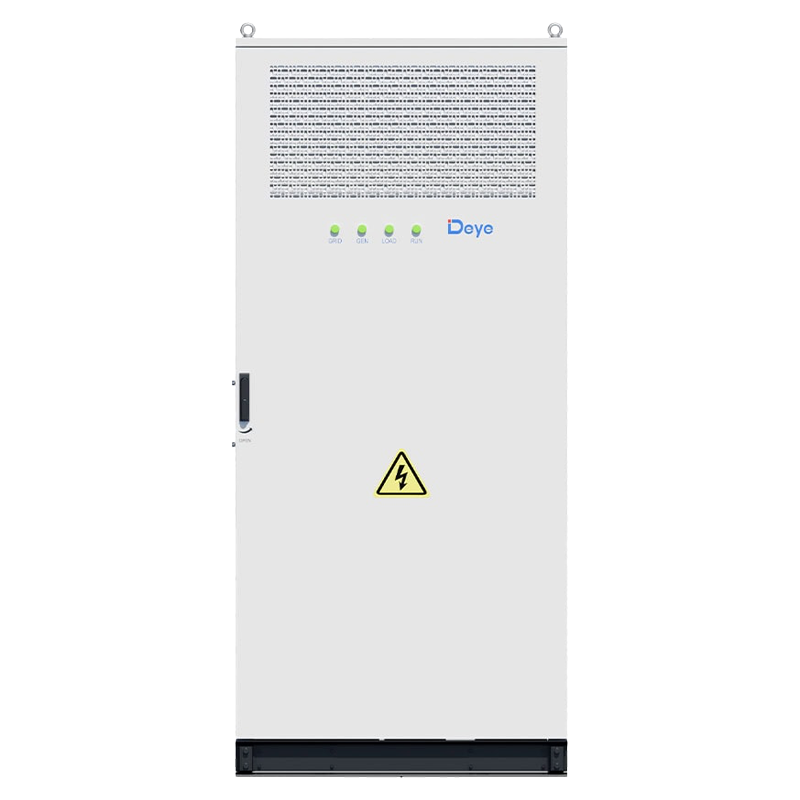

Deye MC-L430-2H3 All‑in‑One C&I Energy Storage System

An all‑in‑one, high‑voltage commercial & industrial energy storage cabinet designed to solve real C&I problems: peak‑shaving, PV self‑consumption, demand charge reduction, and resilient backup power for businesses. The MC‑L430‑2H3 integrates key subsystems (PCS/BMS/EMS) and supports intelligent cloud operation and maintenance.

Inquiry Us Add to cart

Previous: Deye SE-G5.1 Pro-B Low Voltage LFP Battery

Next: Deye SUN-12K-SG02LP1-EU-AM3 12kW Low Voltage Single Phase Hybrid Inverter

More details

Differentiators that matter in tenders:
• Safety first: built‑in fire protection and multi‑level electrical safeguards with high‑voltage interlocking.
• Fast switching (10 ms) supports critical loads and microgrid scenarios.

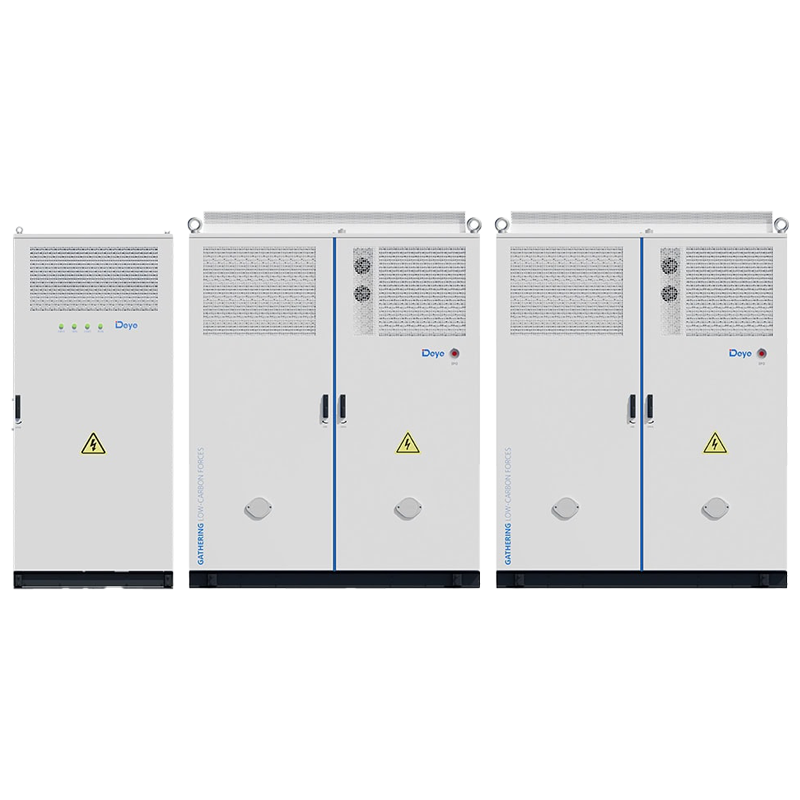

• Modular scaling: parallel up to 8 cabinets enables staged investments and future expansion as site load grows.
• Digital operations: cloud connectivity supports alerts, fleet management, and remote O&M to reduce service cost.

Designed for: industrial parks, commercial buildings, logistics hubs, EV charging expansions, virtual power plant (VPP) participation, and off‑grid / islanded applications where energy density and reliability are essential.

Technical Specifications Feedback

Item	Specification
Battery Chemistry	LiFePO₄
Nominal Capacity	280 Ah
Nominal DC Voltage	768 Vdc
DC Voltage Range	648–876 Vdc
Nominal Energy	430.08 kWh
Communication	RS485, Modbus TCP, DI/DO
Cabinet Dimensions	2000 × 1300 × 2480 mm
Weight	≤ 5000 kg
Expansion Capacity	Up to 8 cabinets in parallel; supports 2–4h storage configurations
Safety & Operation Features	Built-in fire protection, explosion-proof measures, 5-level electrical safeguards, HV interlocking; 10 ms grid switching; cloud O&M
