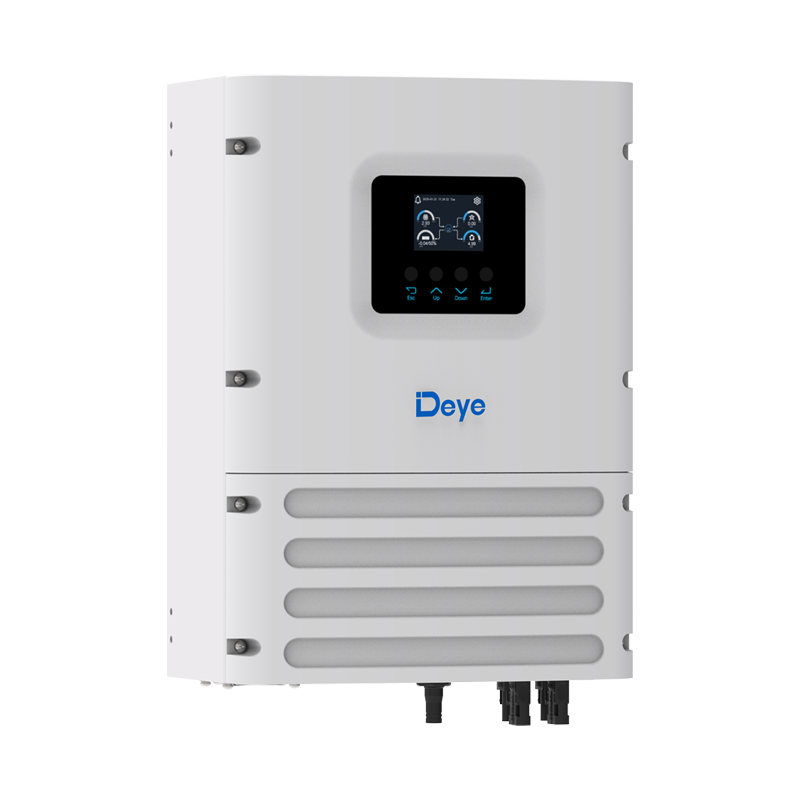

Deye SUN-6K-OG01LP1-EU-AM2 Off‑Grid Inverter

A dedicated off‑grid inverter built for places where the grid is weak, unreliable, or simply not available. The SUN‑6K‑OG01LP1‑EU‑AM2 provides a stable 230V pure sine wave output, supports high PV input, and integrates batteries plus generator power for true energy independence.

Inquiry Us Add to cart

Previous: No previous article available

Next: No next article available

More details

Core strengths in off‑grid projects:
• Pure sine wave output protects sensitive electronics (IT, medical devices, communications).
• Generator integration simplifies backup strategy—use a diesel/petrol generator as an AC source when weather is poor.
• Dual MPPT helps handle different roof orientations (east/west) or mixed strings, improving daily energy capture.
• Outdoor-ready design: IP65 enclosure and wide temperature range make it suitable for remote installations.
• Parallel scalability supports growth—start small, expand later without replacing the whole system.

Best for: rural homes, islands, farms, telecom base stations, construction sites, and any mission‑critical load that needs predictable power without relying on the public grid.

Technical Specifications Feedback

Item	Specification
Rated AC Output Power	6,000 VA / W
AC Output	230 V, L+N+PE, pure sine wave
Max PV Access Power	12,000 W
Max PV Input Power	9,600 W
Max PV Input Voltage	500 V
PV Start-up Voltage	125 V
PV Input Voltage Range	125–500 V
MPPT Voltage Range	150–425 V (full load: 300–425 V)
Rated PV Voltage	370 V
MPPT / Strings	2 MPPT (2/1+1)
Max PV Operating Current	18+18 A
Battery Compatibility	Lead-acid or Li-ion
Battery Voltage	40–60 V
Max Charge / Discharge Current	135 A
Max Efficiency	97.60%
Euro Efficiency	96.50%
MPPT Efficiency	>99%
Ingress Protection	IP65
Operating Temperature	-40 to +60°C
Noise Level	<55 dB
Cooling Method	Intelligent air cooling
Warranty	Standard 5-year warranty
