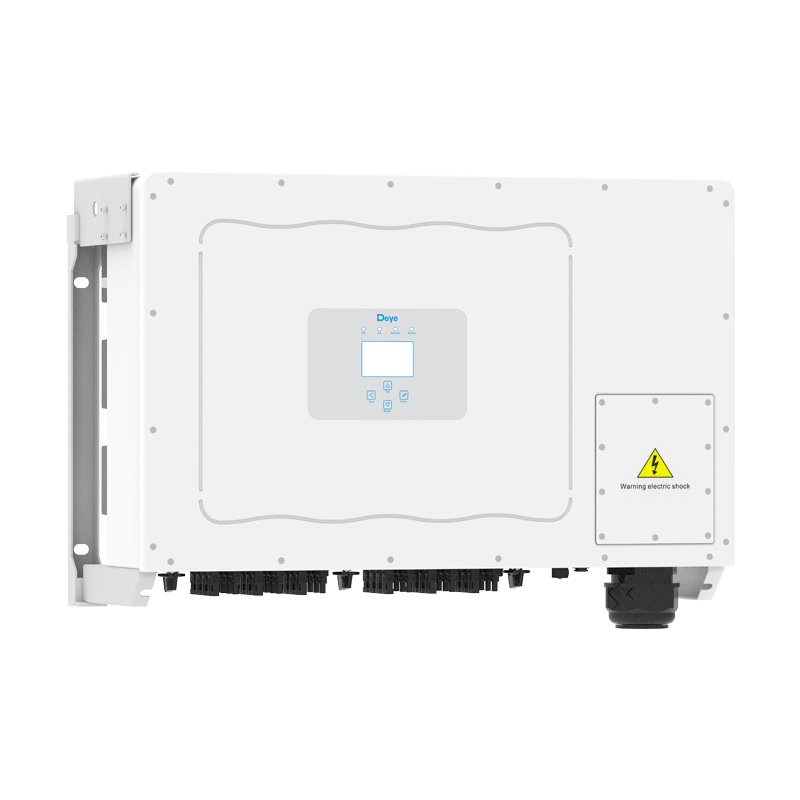

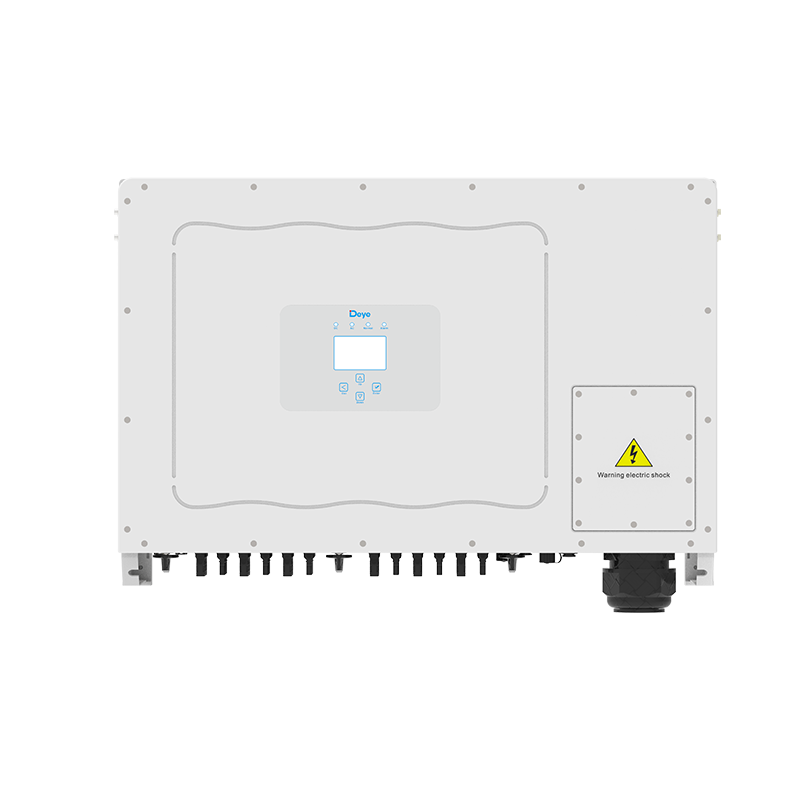

Deye SUN-80K-G03 Three-Phase On‑Grid String Inverter

A high‑power, three‑phase grid‑tied string inverter designed for commercial & industrial PV rooftops and ground‑mount systems. The SUN‑80K‑G03 is built to maximize energy harvest while keeping operation and maintenance straightforward at scale.

Inquiry Us Add to cart

Previous: No previous article available

Next: Deye SUN-100K-G03 100kW String Inverter

More details

Why it sells well in C&I projects:
• Strong DC oversizing support (high PV input power vs. AC rating) for better yield in mornings/evenings and winter.
• Wide MPPT operating window helps maintain stable production across temperature swings and long string designs.
• C&I‑grade protection: IP65 enclosure plus Type II DC/AC surge protection improves reliability in harsh outdoor sites.
• Grid‑support features: supports zero‑export applications and VSG (grid‑support) use cases where required by utilities.
• Optional string‑level intelligent monitoring to speed up troubleshooting and reduce O&M cost.

Ideal for: factories, warehouses, logistics parks, shopping centers, and ground‑mount PV plants where three‑phase grid connection and high efficiency are top priorities.

Technical Specifications Feedback

Item	Specification
Rated AC Output Power	80 kW
Max Apparent Power	88 kVA
Max PV Input Power	104 kW
Max PV Input Voltage	1,000 V
Start‑up Voltage	250 V
MPPT Voltage Range	200–850 V
Rated PV Voltage	600 V
MPPT / Strings	4 MPPT, 4+4+4+4 strings per MPPT
Max Operating PV Current	40+40+40+40 A
Max Short‑circuit PV Current	60+60+60+60 A
Grid Connection	3L+N+PE
Current THD	THDi < 3%
Power Factor	0.8 leading … 0.8 lagging
Max Efficiency	Up to 98.8%
Euro Efficiency	Up to 98.2%
MPPT Efficiency	> 99%
Ingress Protection	IP65
Surge Protection	Type II DC/AC SPD
Operating Ambient Temperature	-25 °C to +60 °C
Maximum Altitude	Up to 4000 m
