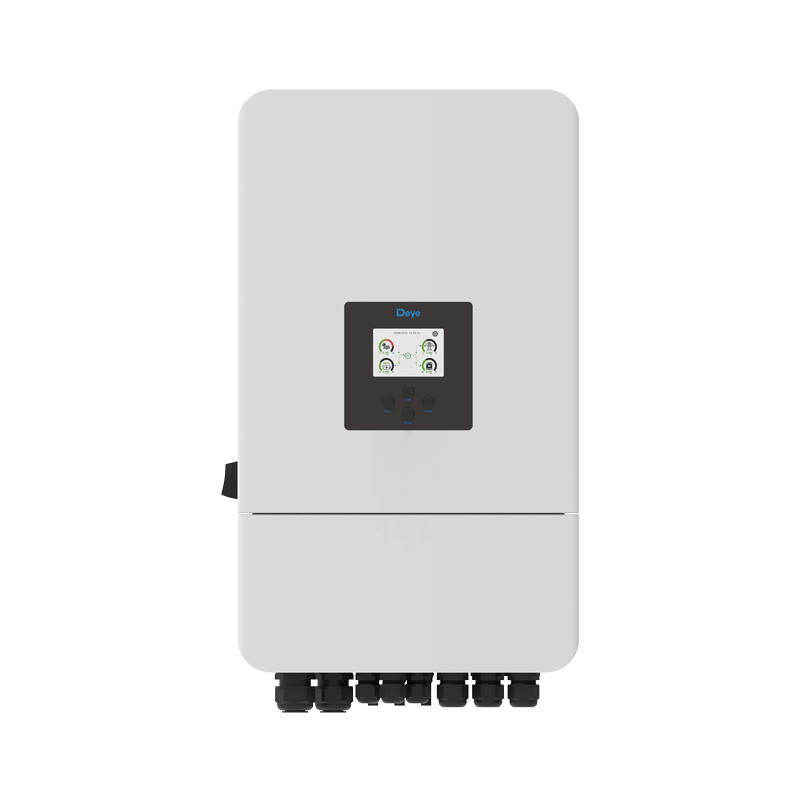

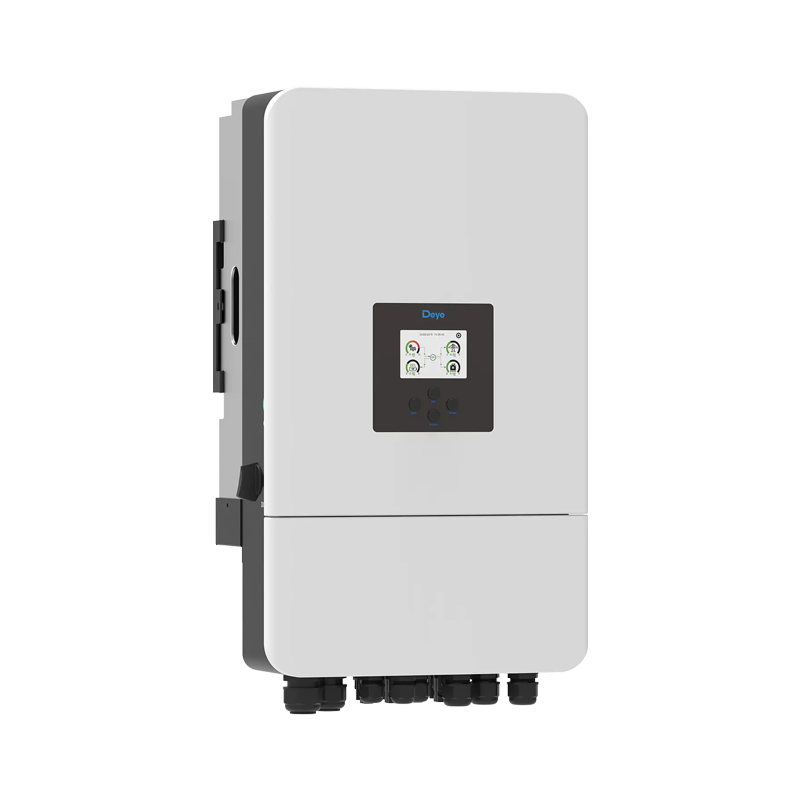

Deye SUN-5K-SG05LP3-EU-SM2 Three-Phase Hybrid Inverter

A modern 3‑phase hybrid inverter built for export projects where self‑consumption, backup power, and flexibility all matter. The SG05LP3 series supports 48V (LV) batteries and can work in both on‑grid and off‑grid modes, making it a strong choice for homes, villas, and small commercial sites that need resilience.

Inquiry Us Add to cart

Previous: No previous article available

Next: Deye SUN-12K-SG02LP1-EU-AM3 12kW Low Voltage Single Phase Hybrid Inverter

More details

Key value points:
• 100% unbalanced output across phases helps handle real‑world mixed loads (single‑phase appliances on a 3‑phase site).
• AC‑coupling capability enables retrofit projects—add storage to an existing PV string inverter system.
• Generator/diesel integration: can store energy from a generator and manage charging windows.
• Time‑of‑use control: up to 6 time periods for battery charge/discharge scheduling to reduce electricity bills.
• Scalability: supports parallel operation up to 10 units (on‑grid and off‑grid).

Typical applications: residential solar + storage, small shops, backup power for critical loads, and PV retrofit upgrades where customers want battery capability without redesigning the whole PV system.

Technical Specifications Feedback

Item	Specification
Rated AC power	5,000 W
Max AC apparent power	5,500 VA
PV max input voltage	800 V
PV start-up voltage	160 V
MPPT voltage range	200–650 V
Rated PV voltage	550 V
Max PV access power	10,000 W
Max PV input power	8,000 W
MPPT / strings	2 MPPT; 2/1+1 (some variants 2/2+2)
Battery	48 V class (40–60 V); Lead-acid or Li-ion; 1 battery input
Max charge/discharge current	120 A (for 5 kW model)
Max efficiency	97.60%
Euro efficiency	97.00%
MPPT efficiency	>99%
Protection/rating	IP65
Operating ambient temperature	-40 to +60°C
Surge protection	Type II DC/AC SPD
