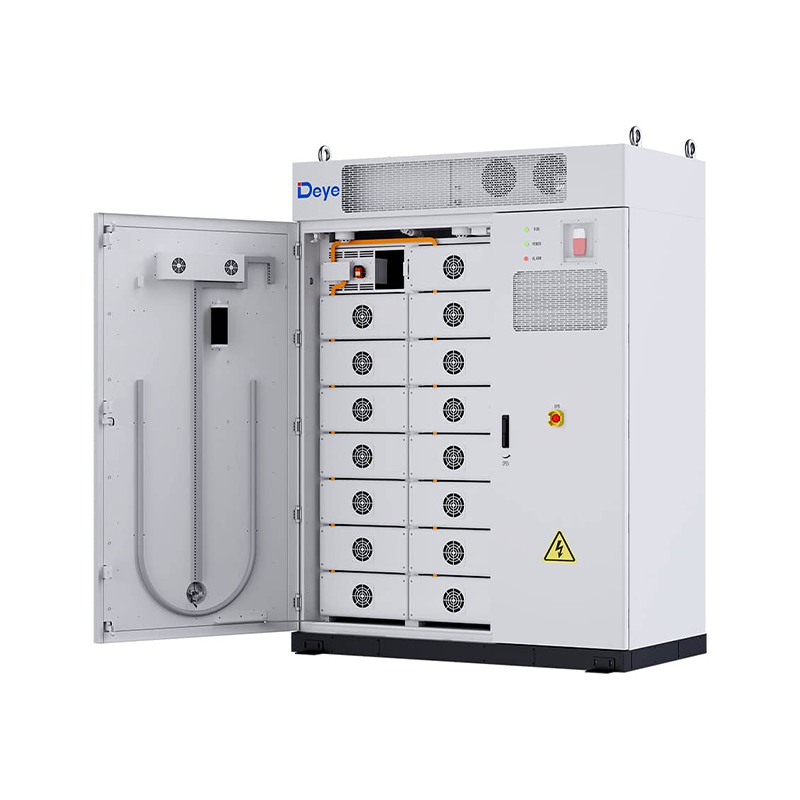

Deye MS-GS215-2H3 C&I Energy Storage System

The Deye MS-GS215-2H3 is an all-in-one solar and battery energy storage system designed for commercial and industrial applications that need both PV integration and reliable battery storage in one outdoor cabinet. Combining 100kW AC output, 200kWp PV input, and 215kWh energy capacity, this integrated C&I ESS is suited to peak shaving, solar self-consumption, backup power, microgrid deployment, off-grid projects, and distributed energy management.

Inquiry Us Add to cart

Previous: Deye RW-F16 Low Voltage Battery

Next: Deye MS-G215-2H3 C&I Energy Storage System

More details

Compared with battery-only cabinets, the MS-GS215-2H3 is especially attractive for customers looking for a PV + BESS solution, because it reduces system complexity and offers integrated communication, off-grid parallel capability, and outdoor-ready protection. Official specifications highlight IP54 protection, C5 anti-corrosion level, up to 10 parallel units in off-grid mode, 97.6% converter efficiency, and a 10-year or ≥6000-cycle warranty profile.

This product is relevant for keywords such as all-in-one C&I energy storage system, solar and battery storage system, 100kW 215kWh ESS, commercial solar battery cabinet, outdoor battery energy storage system, PV BESS solution, microgrid energy storage system, industrial ESS cabinet, off-grid commercial battery system, and Deye MS-GS215-2H3. Official page: https://deyeess.com/product/ms-g215-2h3-ms-gs215/

Technical Specifications Feedback

Item	Details
Model	MS-GS215-2H3
System type	Solar & battery energy storage system
AC output power	100 kW (380/400 Vac, 50/60 Hz)
PV input power	200 kWp
Energy capacity	215 kWh
Round-trip efficiency	88%
Max. parallel units (off-grid)	10 pcs
Communication	ETH / 4G (system); CAN / RS485 / ETH (converter)
Operating temperature	-20°C to 50°C
Max altitude	≤3,000 m
Dimensions (W×D×H)	1,865 × 1,000 × 2,500 mm
Weight	3,030 kg
Protection / certification	IP54, C5, Class 1 SPD, UN3536, IEC standards
Warranty / converter	10 years or ≥6000 cycles; converter max efficiency 97.6%; THD <3%; power factor -1 to 1
