Home / Products / Categories / Inverters / Hybrid Inverter / Megarevo 5KW Single Phase Low Voltage Hybrid Inverter
  • Megarevo 5KW Single Phase Low Voltage Hybrid Inverter

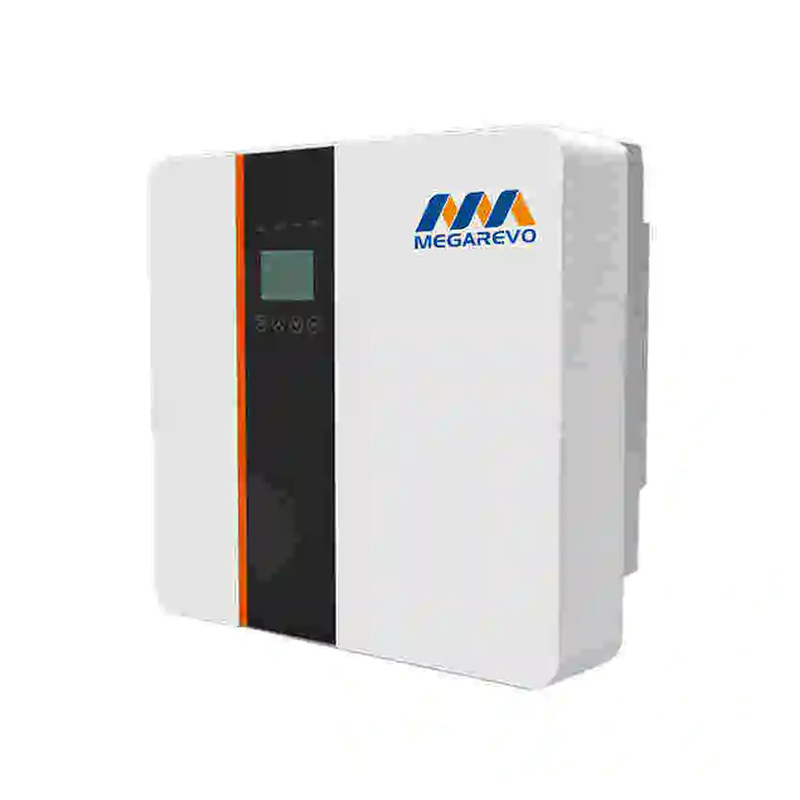

Megarevo 5KW Single Phase Low Voltage Hybrid Inverter

Megarevo 5KW Single Phase Low Voltage Hybrid Inverter

The Megarevo 5kW single-phase low-voltage hybrid inverter is a practical choice for residential PV-plus-storage systems that need dependable battery integration without a high-voltage battery stack. It supports PV generation, battery charge/discharge and backup operation in one compact inverter.

Inquiry Us Add to cart
  • Megarevo 5KW Single Phase Low Voltage Hybrid Inverter
Previous: Megarevo 15KW Three Phase High Voltage Hybrid Inverter
Next: Megarevo 6KW Single Phase Low Voltage Hybrid Inverter
More details

Project value points:
48V-class battery compatibility works well for cost-sensitive residential storage designs.
EPS backup output and fast transfer help protect selected essential loads.
Lithium and lead-acid battery support gives installers more flexibility across project budgets.
IP65 protection and multiple communication options simplify outdoor installation and remote support.

For 5kW home systems, it delivers a balanced combination of affordability, backup capability and clean hybrid integration.

Technical Specifications Feedback
Item Specification
Model Megarevo R5KL1
Inverter Type Single-phase low-voltage hybrid inverter
Rated AC Output Power 5 kW
Grid Parameter 230 V, 50/60 Hz; Max. output current: 21.7 A
PV Input Specification Max. PV power: 7 kW; Max. DC voltage: 550 V; MPPT voltage range: 125–500 V
MPPT & PV Strings 1 MPPT / 1 string; Max. input current: 14 A; Max. short-circuit current: 18 A
Battery Specification 40–58 V battery operating range; Supports lithium and lead-acid batteries; Equipped with CAN communication
Backup Function EPS output with <10 ms transfer time; Suitable for essential-load backup
Protection & Installation IP65 protection grade, wall-mount design, built-in LCD display
Communication & Monitoring Options RS485/Wi-Fi/4G/CAN/DRM optional interfaces
