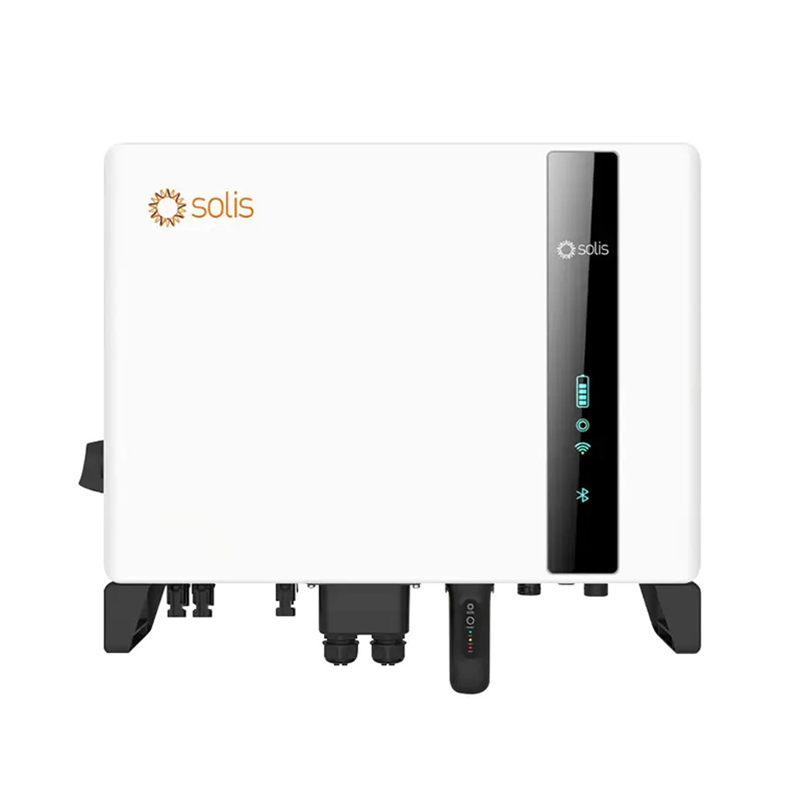

Solis S6-EH3P5K2-H Three-phase Energy Storage Inverter

Solis S6-EH3P5K2-H Three-phase Energy Storage Inverter

The Solis S6-EH3P5K2-H is a high-voltage three-phase hybrid inverter for projects that need faster battery response, efficient PV charging and dependable backup performance. It brings PV generation, battery storage and grid interaction together in a robust IP66 platform suitable for residential and small commercial energy storage.

Inquiry Us Add to cart
  • Solis S6-EH3P5K2-H Three-phase Energy Storage Inverter
Previous: Solis S6-EH3P15K02-NV-YD-L Three-phase Hybrid Inverter
Next: Solis S6-EH3P6K2-H Three-phase Energy Storage Inverter
More details

Project value points:
High-voltage battery architecture improves charging efficiency and supports cleaner system design.
Multiple MPPT inputs help maintain yield when strings face different directions or shading conditions.
Backup transfer under 10 ms helps protect essential loads during grid instability.
Smart monitoring, safety protection and flexible grid-code support make commissioning and long-term service easier.

The 5kW capacity is well suited to energy-storage systems that need a professional balance of PV flexibility, backup capability and compact installation.

Technical Specifications Feedback
Parameter Specification
Model Solis S6-EH3P5K2-H
Inverter Type Three-phase high-voltage hybrid energy storage inverter
Rated AC Output Power 5 kW
Grid Specifications 3/N/PE, 380/400 V, 50/60 Hz
Recommended Maximum PV Array Size 10 kW
Maximum Usable PV Input Power 8 kW
PV Input Voltage Maximum 1,000 V; Nominal 600 V; Start-up 160 V; MPPT operating range 200–850 V
MPPT & Strings Configuration 2 MPPT / 2 strings; Maximum input current 16 A / 16 A; high-current input compatible with modern PV modules
Battery Platform High-voltage lithium battery, 120–600 V class, with CAN/RS485 communication
Backup Performance <10 ms backup switching; up to 1.6× rated backup apparent power for short-duration load support
Protection & Installation Features IP66 protection rating, natural cooling; integrated DC reverse-polarity, short-circuit, surge and grid-protection functions
