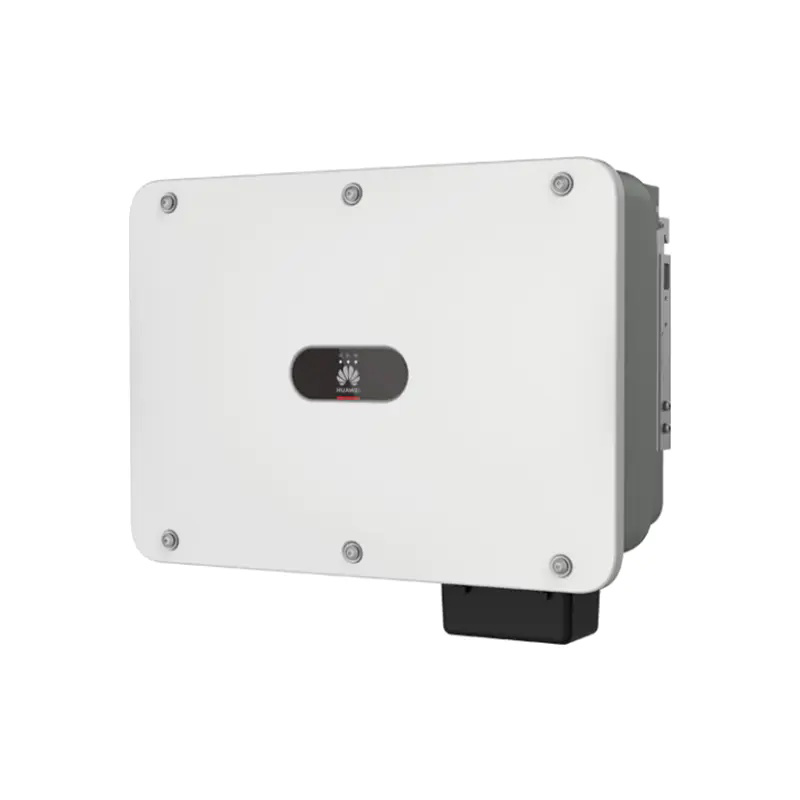

Huawei 40KW SUN 2000-40KTL-M3

Huawei 40KW SUN 2000-40KTL-M3

The Huawei SUN2000-40KTL-M3 is a commercial three-phase string inverter for rooftops, industrial sites and distributed PV plants. It combines high conversion efficiency with four MPPT channels, integrated protection and FusionSolar monitoring for professional project deployment.

Inquiry Us Add to cart
  • Huawei 40KW SUN 2000-40KTL-M3
Previous: Huawei 36KW SUN 2000-36KTL-M3
Next: Huawei 50KW SUN 2000-50KTL-M3
More details

Project value points:
Four MPPT channels and eight string inputs support complex commercial roof layouts and module orientations.
98.7% maximum efficiency helps protect project yield across the operating range.
Built-in AFCI, PID recovery and string fault monitoring strengthen long-term safety and O&M visibility.
Natural cooling and IP66 protection reduce service points and make outdoor installation straightforward.

The 40kW class is ideal for commercial PV projects that need proven Huawei performance, robust protection and precise monitoring at scale.

Technical Specifications Feedback
Item Specification
Model Huawei SUN2000-40KTL-M3
Inverter Type Three-phase commercial smart string inverter
Rated AC Active Power 40 kW
Max. AC Apparent Power 44,000 VA
Grid Parameter 230/400/480 V, 3W/N+PE, 50/60 Hz; Rated output current: 58.0 A class
PV Input Voltage Max. input voltage: 1,100 V; Start voltage: 200 V; Rated input voltage: 600 V; MPPT operating range: 200–1,000 V
MPPT & PV Input 4 MPP trackers / 8 inputs; Max. current: 27 A per MPPT / 20 A per input; Max. short-circuit current: 40 A per MPPT
Efficiency & Protection Max. efficiency: 98.7%; Built-in AFCI, PID recovery, DC/AC surge protection, string fault monitoring and anti-islanding protection
Installation & Monitoring IP66 protection grade, natural convection cooling, LED indicators, integrated WLAN + FusionSolar App, optional Smart Dongle
Dimensions & Weight 640 × 530 × 270 mm; approx. 43 kg (including mounting plate)
